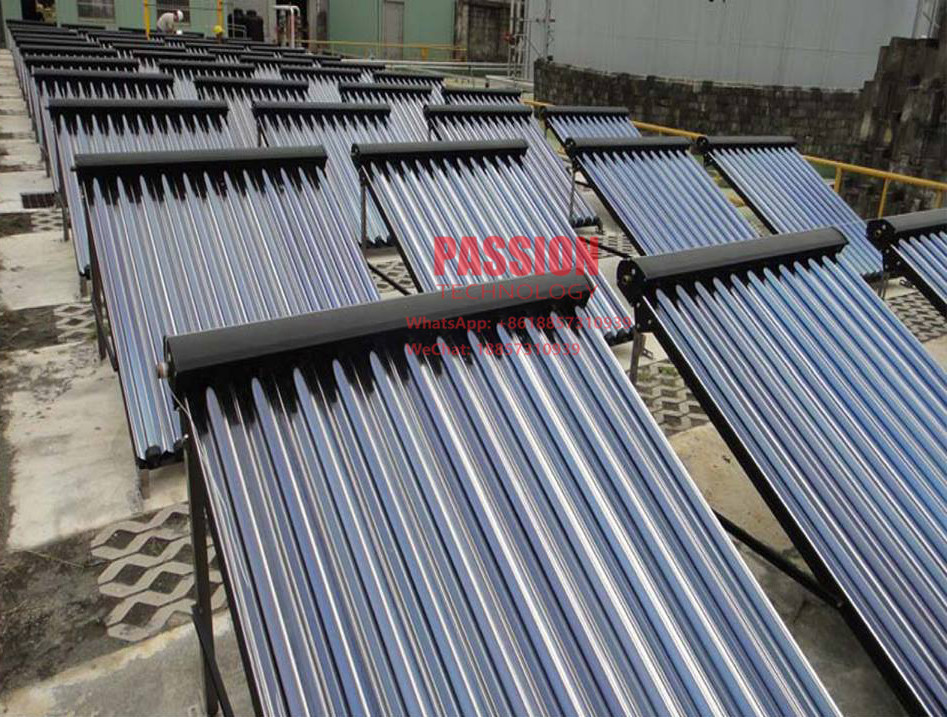

30tubes Copper Pipe Solar Collector 300L Heat Pipe Solar Water
Heater
Heat pipe solar collector working principle
1) Solar absorption: solar radiation is absorbed by the solar tubes
and converted into heat.
2) Solar heat transfer: heat pipes conduct the heat from within the
solar tube up to the
header pipe.
3) Solar energy storage: water is circulated through the header,
via intermittent pump cycling.
Each time the water circulates through the header, the temperature
is raised by 5-10C.
Throughout the day, the water in the tank is gradually heated.
Features:
Reliable and efficient heat-pipe solar tubes
Copper heat pipes for rapid heat transfer
Easy plug-in installation
Free maintenance
Suitable for main pressure water
Corrosion resistant silver brazed copper heater
The surface is made of powder coated galvanized steel
Stable solar conversion during the day
The perfect solar collector for domestic solar water heater systems
Ideal for commercial solar water heating applications
| Heat Pipe Solar Collector Detailed Specification |
| Item | Parts | Description |
| Manifold box | Manifold Outer Case | 1001 Aluminum alloy with plastic spraying; thickness: 2.0mm; |
| Heat Insulation Layer | Rock wool, thickness: 55mm, density 120-140kg/m 3 |
| Copper Header Tube | TU2, thickness: 1.0 mm, Hole spacing: 75mm, max operation pressure
6 bar, phosphor copper brazing |
| End Cover | Nylon |
| Dust Ring | Silicone Rubber 110 |
| Tube holder | Nylon 66 |
| Frame | Frame | Aluminum alloy with plastic spraying; thickness: 2.0mm |
| Heat Pipe Evacuated Tube | Vacuum Tube | Three high vacuum tube, ALN/ALN-SS/CU absorber coating, Dia: 58mm,
Length: 1800mm. |
| Copper Heat Pipe | TU1, Silver Soldering; Condenser of the pipe: diameter: 14mm;
length: 70mm; wall thickness: 1.0mm; The rest of the pipe:
diameter: 8mm; length: 1700mm; wall thickness: 0.8mm |
| Aluminum Fin | AL; thickness: 0.2mm; Length: 1600mm |
| Tube Plug | Silicone Rubber and Stainless Steel |
| Model | Supply hot water(L) | Dia& Length of tube(mm) | Qty. of tubes(pcs) | Absorber Area(sqm) | Loading of 20GP/40HQ |
| PT-SC-58-1800-10 | 100 | 58*1800 | 10 | 1.41 | 148/361 |
| PT-SC-58-1800-15 | 150 | 58*1800 | 15 | 2.10 | 138/336 |
| PT-SC-58-1800-18 | 180 | 58*1800 | 18 | 2.52 | 116/282 |
| PT-SC-58-1800-20 | 200 | 58*1800 | 20 | 2.80 | 95/237 |
| PT-SC-58-1800-25 | 250 | 58*1800 | 25 | 3.50 | 86/215 |
| PT-SC-58-1800-30 | 300 | 58*1800 | 30 | 4.20 | 61/152 |
| PT-SC-58-1800-36 | 360 | 58*1800 | 36 | 4.80 | 52/ 128 |
Technology:
| Model | OEM |
| Manifold casing material | Aluminum painted un-oxygen layer |
| Frame material | Aluminum or Stainless Steel and painted Layer |
| Header pipe material | Copper |
| Heater pipe material | Copper |
| Insulation | Rock wool(it can bear much higher temperature than the polyurethane
foam) |
| Rubber seals and rings | UV stabilized high temperature dilicon rubber |
| Test pressure | 9 bar |

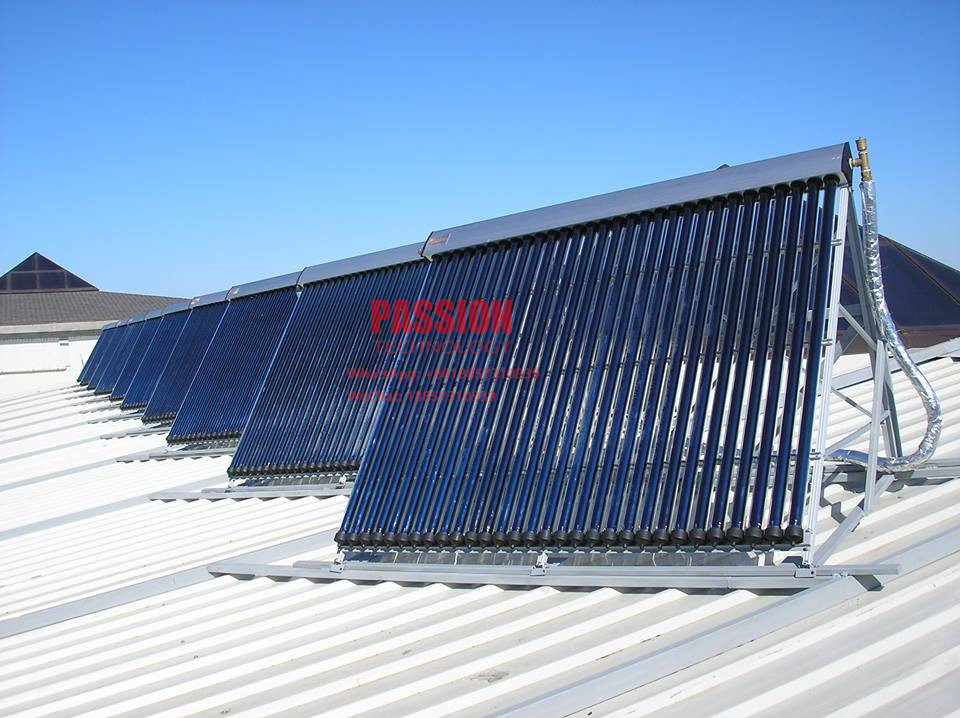

| Collector mounting | Plane roof / slope roof |
| Angle of operation | 10-80 |
| Inlet Outlet | Φ22 or 3/4 inch male |
Quality Policy:
products regular :≥99%
QC before output :100%
Replace free of the bed products:100%
Guarantee :5 years
We can also produce according to your requirement.And OEM is also
provided.
